Single-stage VSD screw compressors
Single-stage screw compression from 7.5 to 220 kW, with permanent magnet variable speed control to follow air demand. We mainly use Jiangtian rare-earth permanent magnet motors for efficient, quiet operation, stable torque and low temperature rise. The complete compressor package meets China Grade 1 energy efficiency, verified through efficiency testing.
SM MODEL SPECIFICATIONS
Select a model to view its specifications on this page. The comparison shows air delivery at 8 bar; each model includes 10 and 12.5 bar data.
| Model | Motor power | Air delivery8 bar | Air outlet | DimensionsL × W × H / mm | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.5 kW | 0.4–1.1 m³/min14.1–38.8 CFM0.3–0.9 m³/min10.6–31.8 CFM0.3–0.7 m³/min10.6–24.7 CFM | G 1/2 | 900 × 600 × 850 | |||||||||||||||||||||||||||||||
SM-10A / Full specificationsSELECTED MODEL SM-10A7.5 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 11 kW | 0.6–1.8 m³/min21.2–63.6 CFM0.5–1.5 m³/min17.7–53 CFM0.4–1.1 m³/min14.1–38.8 CFM | G 3/4 | 1000 × 700 × 1000 | |||||||||||||||||||||||||||||||
SM-15A / Full specificationsSELECTED MODEL SM-15A11 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 15 kW | 0.8–2.4 m³/min28.3–84.8 CFM0.7–2.2 m³/min24.7–77.7 CFM0.6–1.8 m³/min21.2–63.6 CFM | G 3/4 | 1000 × 700 × 1000 | |||||||||||||||||||||||||||||||
SM-20A / Full specificationsSELECTED MODEL SM-20A15 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 22 kW | 1.2–3.5 m³/min42.4–123.6 CFM1.0–3.1 m³/min35.3–109.5 CFM0.8–2.6 m³/min28.3–91.8 CFM | G 1 | 1300 × 790 × 1175 | |||||||||||||||||||||||||||||||
SM-30A / Full specificationsSELECTED MODEL SM-30A22 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 30 kW | 1.7–5.0 m³/min60–176.6 CFM1.4–4.1 m³/min49.4–144.8 CFM1.2–3.4 m³/min42.4–120.1 CFM | G 1 | 1300 × 790 × 1175 | |||||||||||||||||||||||||||||||
SM-40A / Full specificationsSELECTED MODEL SM-40A30 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 37 kW | 2.2–6.5 m³/min77.7–229.5 CFM1.8–5.2 m³/min63.6–183.6 CFM1.5–4.5 m³/min53–158.9 CFM | G 1 1/2 | 1400 × 950 × 1320 | |||||||||||||||||||||||||||||||
SM-50A / Full specificationsSELECTED MODEL SM-50A37 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 45 kW | 2.4–7.1 m³/min84.8–250.7 CFM2.2–6.3 m³/min77.7–222.5 CFM1.7–5.1 m³/min60–180.1 CFM | G 1 1/2 | 1400 × 950 × 1320 | |||||||||||||||||||||||||||||||
SM-60A / Full specificationsSELECTED MODEL SM-60A45 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 55 kW | 3.2–9.3 m³/min113–328.4 CFM2.8–8.0 m³/min98.9–282.5 CFM2.2–6.5 m³/min77.7–229.5 CFM | G 2 | 1750 × 1170 × 1600 | |||||||||||||||||||||||||||||||
SM-75A / Full specificationsSELECTED MODEL SM-75A55 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 75 kW | 4.2–12.2 m³/min148.3–430.8 CFM3.1–9.1 m³/min109.5–321.4 CFM2.2–6.5 m³/min77.7–229.5 CFM | G 2 | 1750 × 1170 × 1600 | |||||||||||||||||||||||||||||||
SM-100A / Full specificationsSELECTED MODEL SM-100A75 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 90 kW | 5.2–15.4 m³/min183.6–543.8 CFM4.2–12.2 m³/min148.3–430.8 CFM3.6–10.6 m³/min127.1–374.3 CFM | G 2 | 1900 × 1250 × 1600 | |||||||||||||||||||||||||||||||
SM-120A / Full specificationsSELECTED MODEL SM-120A90 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 110 kW | 6.5–19.0 m³/min229.5–671 CFM5.2–15.4 m³/min183.6–543.8 CFM4.4–13.0 m³/min155.4–459.1 CFM | G 2 1/2 | 2100 × 1350 × 1880 | |||||||||||||||||||||||||||||||
SM-150A / Full specificationsSELECTED MODEL SM-150A110 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 132 kW | 7.6–22.3 m³/min268.4–787.5 CFM6.5–19.0 m³/min229.5–671 CFM5.7–16.7 m³/min201.3–589.8 CFM | G 2 1/2 | 2100 × 1350 × 1880 | |||||||||||||||||||||||||||||||
SM-175A / Full specificationsSELECTED MODEL SM-175A132 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 160 kW | 9.5–28.0 m³/min335.5–988.8 CFM8.1–23.8 m³/min286–840.5 CFM7.5–21.9 m³/min264.9–773.4 CFM | G 2 1/2 | 2400 × 1450 × 2035 | |||||||||||||||||||||||||||||||
SM-200A / Full specificationsSELECTED MODEL SM-200A160 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 185 kW | 10.5–31.0 m³/min370.8–1094.8 CFM9.7–28.6 m³/min342.6–1010 CFM8.4–24.6 m³/min296.6–868.7 CFM | DN80 | 3000 × 1590 × 2150 | |||||||||||||||||||||||||||||||
SM-250A / Full specificationsSELECTED MODEL SM-250A185 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 200 kW | 11.7–34.5 m³/min413.2–1218.4 CFM10.2–30.0 m³/min360.2–1059.4 CFM8.8–26.0 m³/min310.8–918.2 CFM | DN80 | 3000 × 1590 × 2150 | |||||||||||||||||||||||||||||||
SM-270A / Full specificationsSELECTED MODEL SM-270A200 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
| 220 kW | 13.2–38.9 m³/min466.2–1373.7 CFM11.7–34.4 m³/min413.2–1214.8 CFM10.1–30.1 m³/min356.7–1063 CFM | DN125 | 3800 × 2200 × 2400 | |||||||||||||||||||||||||||||||
SM-300A / Full specificationsSELECTED MODEL SM-300A220 kW / Permanent magnet variable speed screw compressor
Air delivery is the compressor output rating at the stated working pressure. Compare values on the same reference basis. CFM and psi are unit conversions from the listed metric values.
| ||||||||||||||||||||||||||||||||||
Listed specifications cover SM-10A to SM-300A (7.5–220 kW). Larger configurations up to 280 kW are available on request. Compare air delivery at the same working pressure; final appearance, dimensions and components are confirmed with your quotation.
CUSTOMER INSTALLATIONS
Real customer-site photographs showing SM compressors with separate receiver storage, refrigerated drying and filtration.

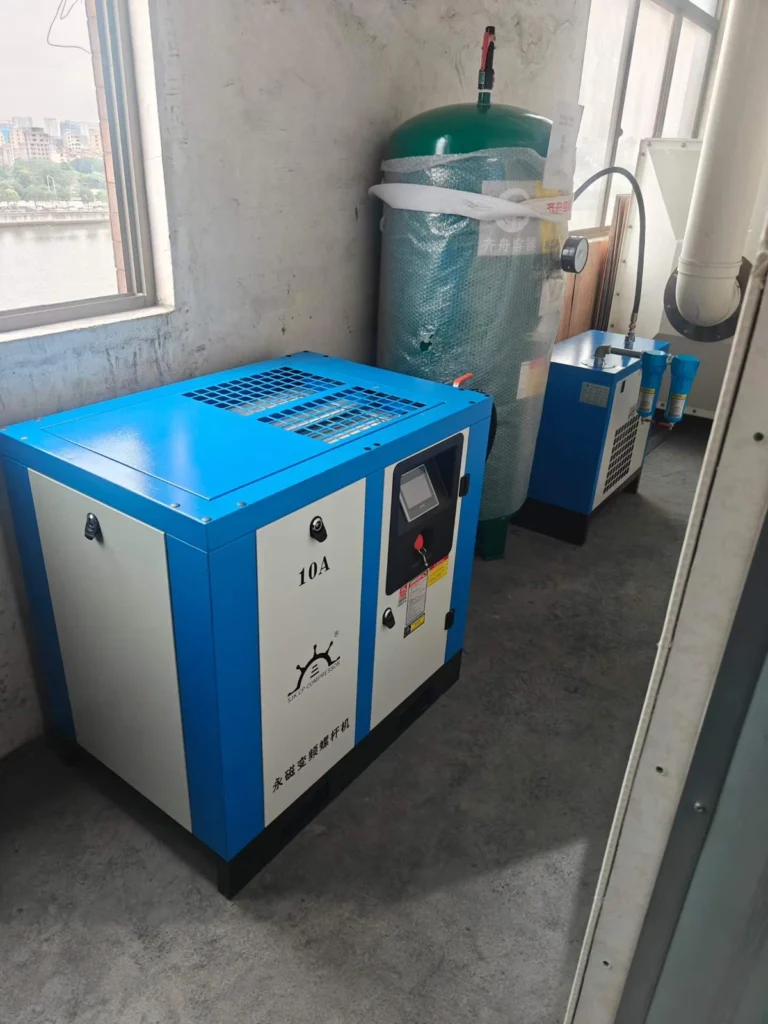

Separate air receiver, refrigerated dryer and precision filtration.
Separate air storage, refrigerated drying and filtration.

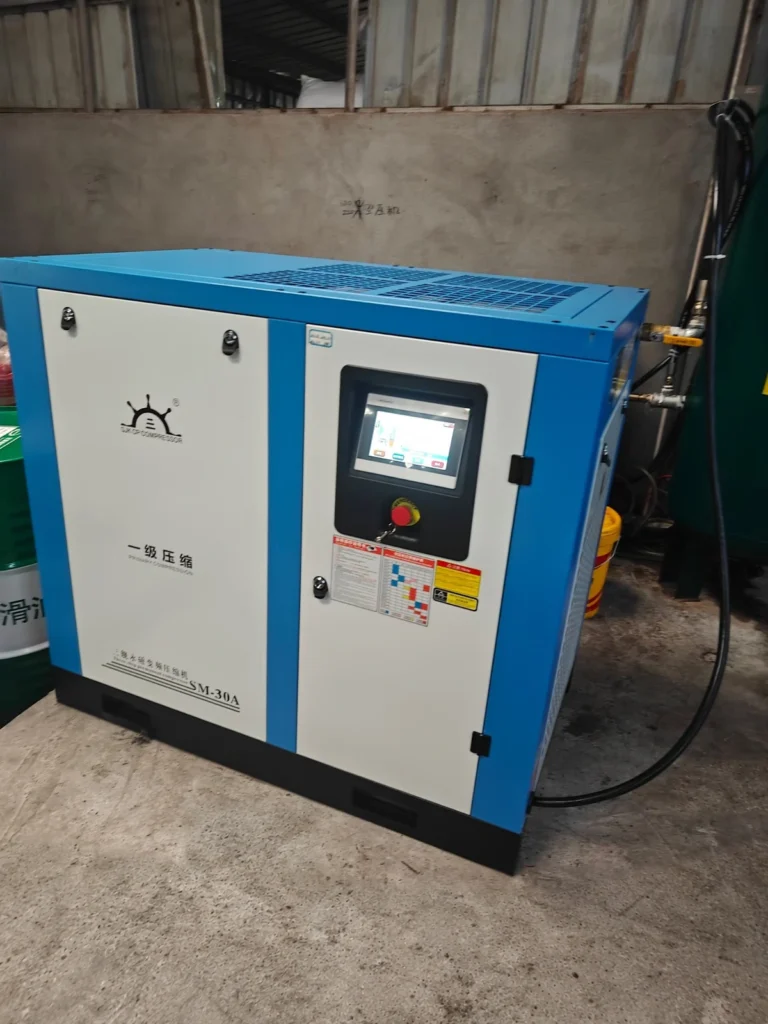

Compressor outlet and compressed-air pipe connections.
Air receiver storage and refrigerated air drying.
Installation layouts vary with site conditions. Receiver storage and air treatment are selected to match each application.
SERIES OVERVIEW
The SM series combines single-stage screw compression with a permanent magnet variable speed drive. It suits factories where air demand changes during the day. The compressor, receiver, dryer and filters can be placed separately to fit your workshop.
The online range covers SM-10A to SM-300A, from 7.5 to 220 kW. Compare the air-delivery row at your required working pressure: the same motor power does not deliver the same airflow at every pressure. Other single-stage sizes within our 7.5–280 kW supply range can be discussed for larger installations.
The drive adjusts motor speed within its operating range as air demand changes. Selection should take account of minimum demand, peak demand and daily running hours. Any energy comparison needs the actual load profile and operating pressure.
Pair the compressor with a receiver and an appropriately sized dryer. Add filtration according to the process requirements. This arrangement is useful when equipment must be placed separately or a production line is likely to expand.

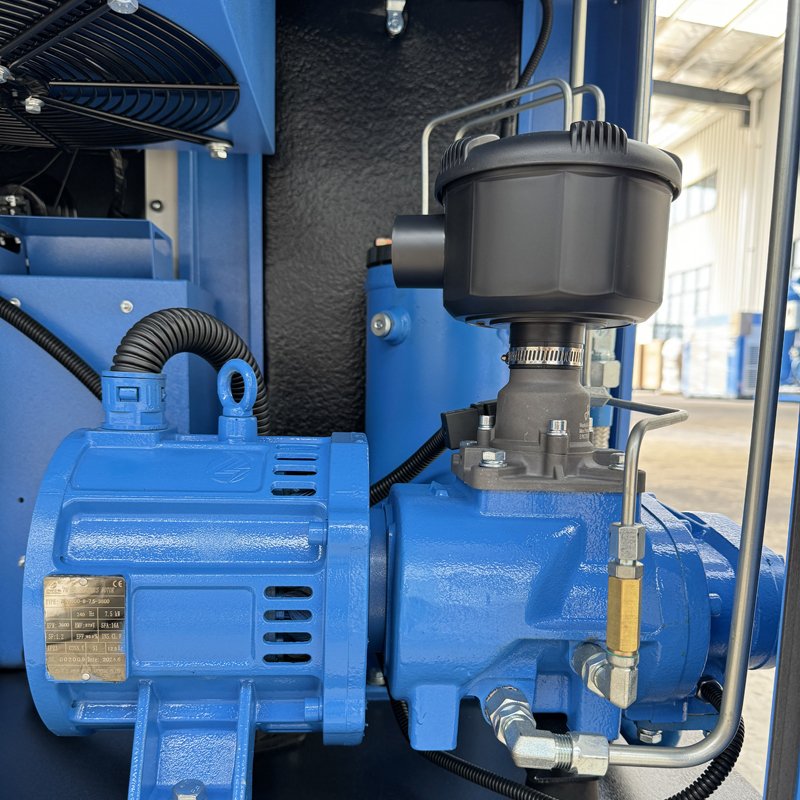

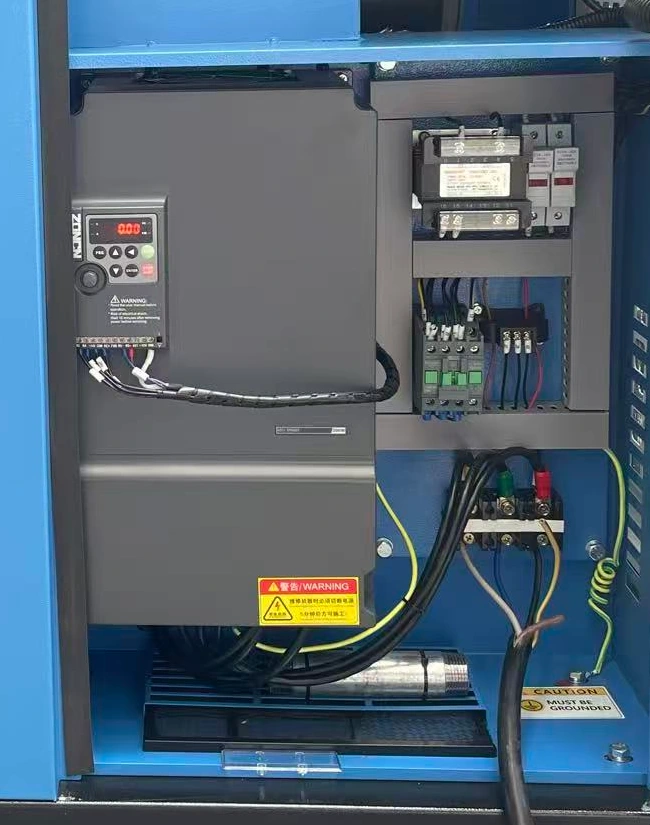

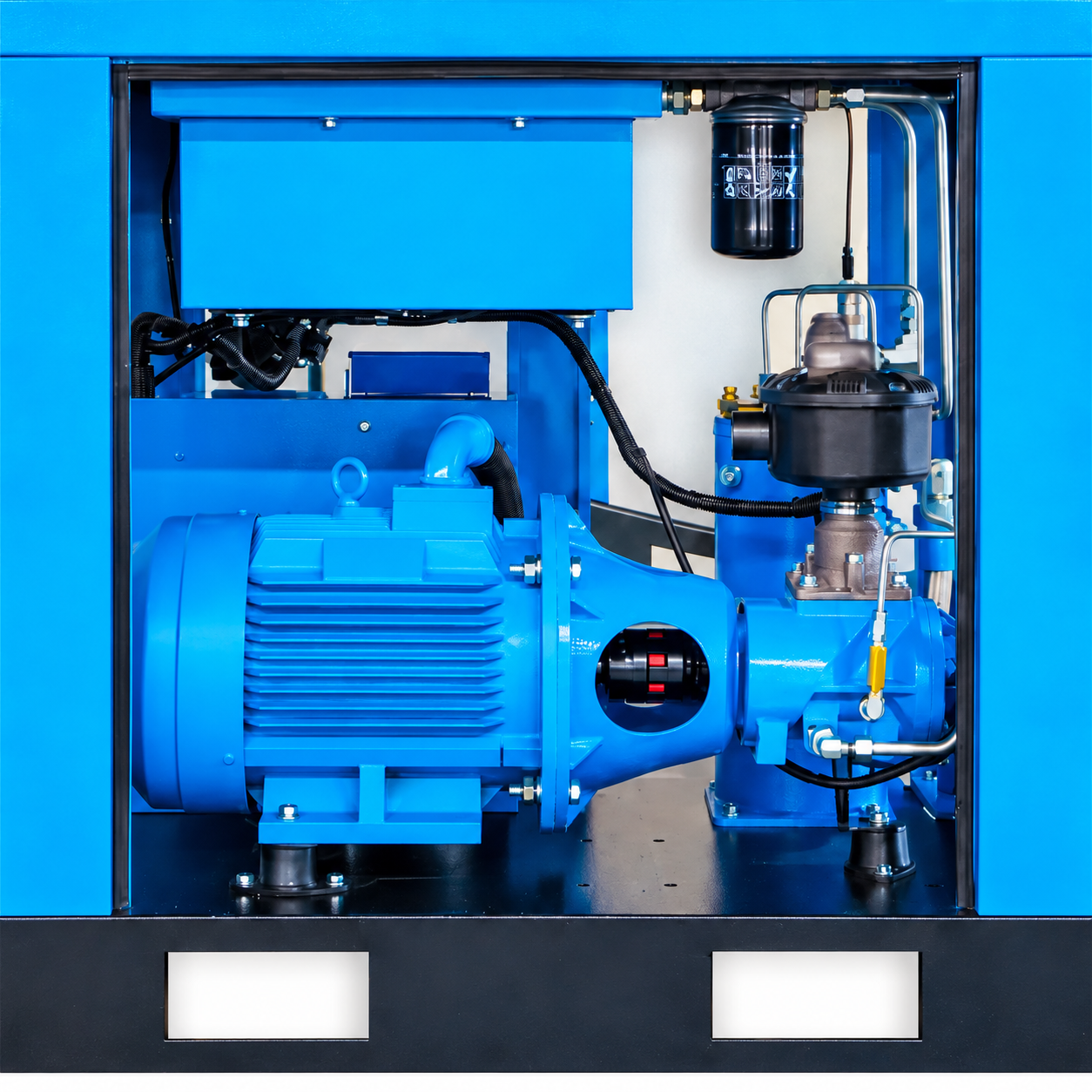

Mainly BAOSI screw airends, with HANBELL or Torin Drive (Tongrun) available on request. Specify Jiangtian permanent magnet motors, IP23 or IP55 protection, and ZONCN or INOVANCE inverters to suit the installation.
Our enclosure panels are made from thick material conforming to Chinese national standards. The rigid panels help reduce resonance and provide stable support for the enclosure. Internal thermal and acoustic insulation lining helps reduce operating noise.
Suitable applications include pneumatic production equipment, packaging, general fabrication and workshops with variable air use. Check ambient temperature, ventilation and the distance to the point of use when planning the installation. For automotive spray painting and product spray finishing, review the spray-gun demand and required drying and filtration with the complete air system.
SELECTION & SUPPORT
Share your working pressure, air demand, operating hours, electrical supply and installation conditions. We can review the SM model, motor protection, inverter and separate air-treatment components for your enquiry.
MATEOU offers a two-year equipment warranty. Applicable coverage and terms are confirmed in the quotation and order documents.
COMMON QUESTIONS
Choose SM when you want a separate air station or already have a receiver and air treatment equipment. An SZ integrated package brings these functions together for a compact installation. Compare the complete equipment scope and the space available.
No fixed saving percentage applies to every installation. The result depends on the demand pattern, operating pressure, control settings and how the current compressor runs. Share these details so the proposed configuration can be assessed.
Yes. The displayed SM models cover 7.5–220 kW, while the wider single-stage supply range extends from 7.5 to 280 kW. Ask for the specific performance and dimensions of the size you need.
