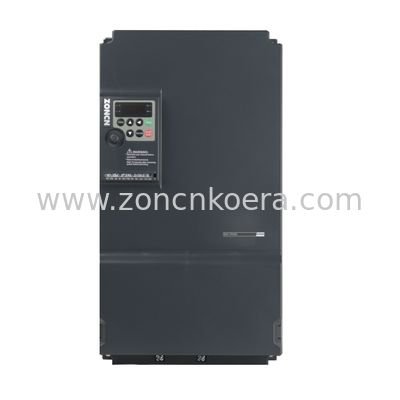

Representative component images. Confirm the exact part number, fitment and supplied item with your quotation.
MATEOU / PARTS
ZONCN Compressor VFDs
Variable-frequency drives
- Component type
- Variable-frequency drives
MATEOU offers ZONCN variable-frequency drive configurations and matched replacement drives for compatible compressors. The NZ200T family is an air-compressor drive reference. Share the existing drive label, motor nameplate, power supply and controller information so the correct power rating, software and connections can be confirmed.
← Compare Parts & AccessoriesPRODUCT DESCRIPTION
ZONCN Compressor VFDs / Filters, filter elements & service parts
MATEOU offers ZONCN variable-frequency drive configurations and matched replacement drives for compatible compressors. The NZ200T family is an air-compressor drive reference. Share the existing drive label, motor nameplate, power supply and controller information so the correct power rating, software and connections can be confirmed.
Before ordering ZONCN Compressor VFDs, identify the installed compressor or treatment equipment and the existing component. Include the part number, clear photographs, dimensions and connection information where available. The quotation confirms fitment and the actual item supplied.
For routine maintenance, replacement projects and distributor service stock, prepare a list of the installed equipment and the parts required. Availability, quantity, packaging and delivery arrangements are confirmed for the order.
FEATURES
Equipment at a glance.
- ZONCN component brand
- NZ200T compressor-drive family reference
- Motor, controller and electrical configuration checked together
SPECIFICATIONS
Technical details.
Configuration confirmed
with your equipment quotation.
| Model / component | ZONCN Compressor VFDs |
|---|---|
| Equipment type | Variable-frequency drives |
| Component category | Variable-frequency drives |
| Component brand | ZONCN |
| Product family reference | NZ200T compressor variable-frequency drives |
| Example model reference | NZ200T-30GY-4-24V |
| Example model power | 30 kW — this value applies to the example model |
| Example model supply | Three-phase 380 V, 50/60 Hz; confirm the selected unit |
| Replacement / configuration | Matched to motor type, rated current, controller and existing drive software |
| Information to provide | Drive label, motor nameplate, electrical supply and compressor model |
| Power range shown | 7.5–110 kW / matched configuration |
PARTS SELECTION
Identify before ordering.
Send clear photos of the component, its part number and the equipment nameplate. The quotation confirms fitment and the component supplied.
Catalogue values are references. Confirm final dimensions, components and performance for the selected configuration before order.
COMPONENT RANGE
Common specifications.
Compare references and match
the installed equipment.
ZONCN drive power references / 7.5–110 kW
| Motor power (kW) | Typical HP class | NZ200T G-duty model reference | G-duty output current (A) |
|---|---|---|---|
| 7.5 | 10 | NZ200T-7R5G/11P-4 | 17 |
| 11 | 15 | NZ200T-11G/15P-4 | 25 |
| 15 | 20 | NZ200T-15G/18.5P-4 | 32 |
| 18.5 | 25 | NZ200T-18.5G/22P-4 | 37 |
| 22 | 30 | NZ200T-22G/30P-4 | 45 |
| 30 | 40 | NZ200T-30G/37P-4 | 60 |
| 37 | 50 | NZ200T-37G/45P-4 | 75 |
| 45 | 60 | NZ200T-45G/55P-4 | 90 |
| 55 | 75 | NZ200T-55G-4 | 110 |
| 75 | 100 | NZ200T-75G/90P-4 | 150 |
| 90 | 120 | NZ200T-90G/110P-4 | 176 |
| 110 | 150 | NZ200T-110G/132P-4 | 210 |
Three-phase 380 V family references. Confirm the compressor-specific version, motor type, nameplate current, controller, supply and firmware. The first G-duty rating is shown; G/P dual ratings are not interchangeable.
INSTALLATION & MAINTENANCE
Prepare for dependable operation.
Routine care
Use the equipment maintenance schedule and the specified consumables. Keep a record of running hours, service work and operating conditions. The site environment and duty pattern affect maintenance planning.
When you need support
Send the model and serial number, nameplate photo, operating conditions and a clear description of the issue. Include any controller alarm and relevant photos or video. This information helps identify the appropriate technical guidance or replacement component.
WARRANTY & SUPPORT
Confirm the details
before you order.
MATEOU offers a two-year equipment warranty. Applicable coverage and terms are confirmed in your quotation and order documents. Request operating information, maintenance guidance and the appropriate consumables for your selected configuration.
Request photographs and fitment details for the actual part to be supplied.
